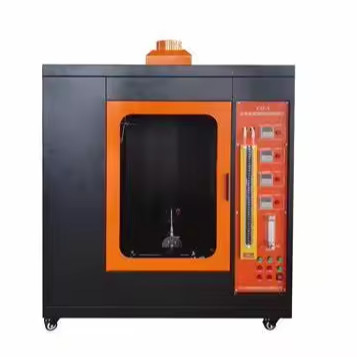

    AC220V 50HZ Vertical Combustion Testing Equipment For Rigid Foam

    Ask Lasest Price
    Price : US$2000-$30000
    Brand Name : CHENGFENG
    Certification : ISO,CE
    Delivery Time : 10 Work Days
    Payment Terms : T/T,Cash,L/C
    Supply Ability : 5 units per month
    • Product Details
    • Company Profile

    AC220V 50HZ Vertical Combustion Testing Equipment For Rigid Foam

    Vertical Combustion Tester for Rigid Foam, suitable for evaluating the horizontal combustion performance


    [Product Introduction]This machine is suitable for evaluating the vertical combustion performance of rigid foam or foam rubber under laboratory conditions;

    This machine is suitable for evaluating the horizontal combustion performance of small specimens of foam with a density of less than 250kg/m3 determined by ISO 845:1985 under small flame under laboratory conditions.


    [Test standard]GB/T8333-2008 Rigid foam combustion performance test method: vertical combustion method; (Equivalent to the American Society for Testing and Materials standards and GB/T8332-2008 foam combustion performance test method horizontal combustion method.) (Equivalent to the international standard "ISO9772 Foam - Determination of Horizontal Combustion Performance of Small Specimens under Small Flame Conditions")


    [Detailed Description]Rigid Foam Vertical Combustion Tester, GB/T8333 Vertical Combustion Tester, Hard Foam Combustion Tester (Vertical Method)


    Key Specifications:

    Bunsen burner burning tube inner hole: 9.5±0.5mm

    Bunsen burner burner length: 100±10mm

    Bunsen burner and vertical direction: 0°/15°

    Bunsen lamp wing top: The internal length of the opening is 48±1mm, and the width is 1.3±0.05mm

    Vertical combustion rack barrel length: 305mm

    Vertical combustion specimen holder: seat plate 191×13×6mm, nail diameter 2.5mm, length 38mm

    Vertical combustion weighing pan: aluminum, diameter 50 mm

    Weighing tray position: The weighing bottom is 76mm away from the bottom of the combustion rack barrel

    Vertical combustion flame height: 25~30mm

    Position of the vertical combustion specimen: 25mm from the center of the top of the combustion tube

    Specifications of vertical combustion specimens: 20±1mm× 20±1mm × 250±1mm

    Number of specimens for vertical burning: 6

    Vertical combustion ignition time: 10s

    Horizontal combustion specimen position: The bottom of the specimen is 13±1mm away from the top of the wing of the Bunsen lamp

    Horizontal combustion mark line position: 25mm, 60mm, 125mm from the ignition point

    Horizontal combustion bracket: 215×75mm, the end is folded at a right angle, and the height is 13mm

    Horizontal combustion flame height: 38±2mm

    Horizontal combustion ignition time: 60s

    Horizontal combustion specimen specifications: 150±1mm ×50±1mm, specimen thickness≤13mm±1mm

    Number of samples: not less than 20 pieces

    Power supply: AC 220V/50Hz
