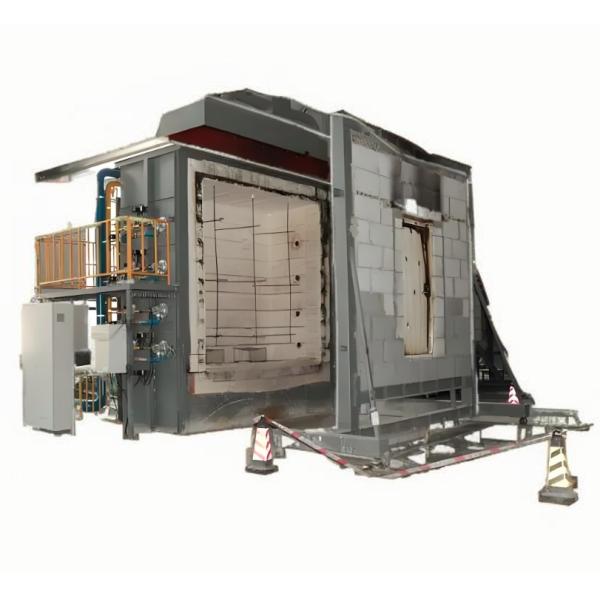

    BS EN 13823 Building Materials Single Burning Item Test SBI Test Machine

    Ask Lasest Price
    Price : US$2000-$30000
    Brand Name : CHENGFENG
    Certification : ISO,CE
    Delivery Time : 10 Work Days
    Payment Terms : T/T,Cash,L/C,Western Union,MoneyGram
    Supply Ability : 5 units per month
    • Product Details
    • Company Profile

    BS EN 13823 Building Materials Single Burning Item Test SBI Test Machine

    BS EN 13823 SBI test Machine ,used for Building Materials, Single Burning Item Test Apparatus ,lab Testing Equipment

    BS EN 13823 Building Materials Single Burning Item Test SBI Test Machine
    BS EN 13823 Building Materials Single Burning Item Test SBI Test Machine
    BS EN 13823 Building Materials Single Burning Item Test SBI Test Machine
    Specification
    EN13823 Test Overview:
    This experiment tests the fire reaction performance of building materials or products, and determines the fire reaction performance of flat building products through testing.
    Equipment composition:
    The equipment includes a combustion laboratory, control room, trolley, exhaust pipe, data collection and analysis device, and gas
    supply control device.
    EN13823 Equipment Technical Parameters:
    1. Combustion laboratory: L3000 * W3000 * H2400 (MM), with a gas collection hood and exhaust pipe connected to the sampling pipeline at the top of the room, and a space for natural air intake and exhaust under the trolley. During the experiment, the heat released from the combustion of the sample and the combustion products must be discharged from the exhaust pipe, which is constructed with brick walls.
    2. The ignition source is a 31KW propane right angle sandbox burner (with a side length of 250mm and a height of 80mm) placed in a vertical corner on a small cart.
    3. A comprehensive sampling area is set up in the smoke exhaust duct for placing sensors and sampling pipes.
    4. Smoke exhaust speed: 0.50 cubic meters per second to 0.65 cubic
    meters per second.
    5. Indoor environmental temperature measurement: K-type armored thermocouple with a diameter of 1MM, environmental pressure test: ± 200Pa.
    6. Smoke exhaust duct temperature measurement: imported K-type armored thermocouple with a diameter of 0.5.
    7. Temperature measurement accuracy: 0.5 ℃.
    8. High precision pressure sensor for exhaust duct, with an accuracy
    of ± 2Pa
    9. Time recording system accuracy: 0.1S.
    10. Test time: 1 to 30 minutes can be set.
    11. The smoke density measurement system can measure the smoke density during the testing process.
    12. The gas analyzer and key components are all imported with original packaging.
    13. Equipped with embedded computer and 8.4-inch LCD display, with multiple communication interface options including TCP/IP and RS-232 14. Oxygen measurement:
    1) Measurement range: 0-25%
    2) Signal output: 4-20mA;
    3) Response time T90: ≤2S;
    4) Environmental temperature: 0-45 ℃;
    5) Relative humidity:
    Our Services:
    *Consulting support.
    *Sample testing support.
    *Factory Visiting
    *Training support
    *Installation support
    *24 Hours &7 days service
    BS EN 13823 Building Materials Single Burning Item Test SBI Test Machine
    BS EN 13823 Building Materials Single Burning Item Test SBI Test Machine

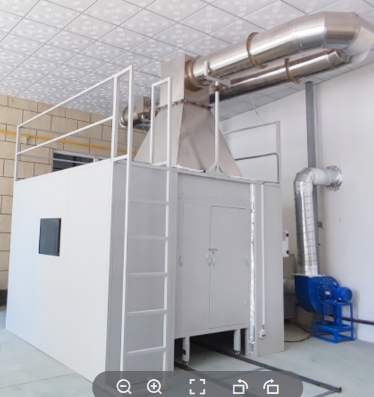

    Customer Photos
    BS EN 13823 Building Materials Single Burning Item Test SBI Test Machine
    Packing & Delivery
    BS EN 13823 Building Materials Single Burning Item Test SBI Test Machine
    1. Fire and flame retardant testing instrument series:
    building materials, components, doors and Windows, interior decoration materials fire performance testing equipment;

    2. Wire and cable testing instrument series:
    wire and cable fire retardant rating, UL testing, mechanical properties testing equipment;
    3. Polymer material testing instrument series:
    silicone rubber, rubber material electrical indentation, flame retardant, breakdown testing equipment;
    4. Environmental and mechanical testing instrument series:
    constant temperature and humidity box, uv aging, xenon lamp aging, tensile testing machine;
    5. Pv module testing instrument series: UL790 roof/pv module fire tester
    6. Automatic equipment: customized non-standard automatic online testing equipment, assembly line, ICT testing machine, etc.
