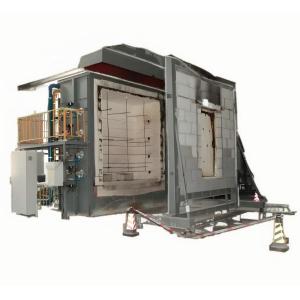

CF8342 Building Component Fire Resistance Testing Machine

Scope of application: Suitable for fire resistance testing of building components and the fire resistance performance of load-bearing vertical partition components.

Working voltage: AC 380V ± 10% 50NZ.

Furnace body: The experimental furnace passage is composed of bricks, steel structure, and fire insulation materials.

Sample size: 300mm wide × 300mm high (customizable).

The dimensions inside the furnace are approximately:

Vertical furnace: L3.2m×W2.2m×H4.0m

Horizontal furnace: L3.2m×W3.2m×H1.5m.

Gas flow rate: 0-100L/min, with a measurement accuracy of 2.5 levels.

Air flow rate: 0-50m3/min, measurement accuracy≤±0.5m³/min.

Gas tank capacity: ≥ 50kg×6.

Load measurement equipment:±2.5% of the load value should be added (required for loading type tests).

Test piece gap measurement probe: with a diameter of 6mm±0.1mm and a diameter of 25mm±0.2mm.

Combustion system: gas distribution system (within 10 meters), nozzle (not less than 20), and regulating valve.

Combustion gas sources: propane, liquefied gas.

Furnace temperature control system: maximum sampling point of 10 points.

Ventilation system and control air valves, etc.

The measurement range of radiation heat on the back fire surface of the specimen is 0~10W/cm2.

Furnace pressure measurement range: 0-100pa

Measurement accuracy:≤±3pa.

Test temperature: The furnace temperature control meets the requirement of T-T0=3451g (8t+1), and its temperature control deviation

When 0min<t≤10min, d≤15%.

When 10min<t≤30min,d≤10%.

When T>30min, d≤5%.

Furnace temperature:±15℃.

Internal temperature of the specimen:±10℃.

Test piece back fire temperature:±4℃.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2012,sell to Domestic Market(30.00%),Northern Europe(20.00%),Mid East(15.00%),Eastern Europe(10.00%),Western Europe(10.00%),South America(5.00%),Central America(5.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Fire Testing Equipment,Construction Materials Testing Equipment,Plastic Testing Equipment,Wire Testing Equipment,Environmental Test Chamber

4. why should you buy from us not from other suppliers?
Advanced technology research and development capabilities, high-quality product manufacturing and testing capabilities, rich industry experience and professional knowledge, as well as good customer relationships and reputation.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese

CHENGFENG is a professional manufacturer of Building materials/ Wire/ Plastics/ Rubber Fire retardant testing equipment

About CHENGFENG Company:

CHENFENG TESTING EQUIPMENT CO., LTD (DAXIAN INSTRUMENT EQUIPMENT CO., LTD) is Located in Changan Town (Dongguan City ,Guangdong Province, China),a famous historical town with prosperous industry and convenient transportation.

We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.

CHENGFENG's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, LED, photoelectricity, mobile, plasticand rubber, telecommunication, chemical industry, aerospace, building material and product, wire and cable,textile and fabrix, etc.

All CHENGFENG testing equipment are designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, UL, TAPPI, AATCC, IEC, VDE, CSA,CEN and so on.

Our service:
1. High quality guarantee.
2. Shipment with professional documents.
3. Packing as your request, with photo before shipment.
4. Reply within 48 hours and provide solution within 3 working days
5. Professional after-service from our engineers.
6. Warranty period 12 monthes.

Our advantages:
1. Professional technology support.
2. Full experience of large numbers containers loading in Chinese sea port.
3. Fast shipment by reputed shipping line.
4. Best service after shipment with emails.
5. We are professional test equipment manufaturer in China with excellent experience and skills, also have best quality products.

6. In-time after-sale service.
